Beschreibung

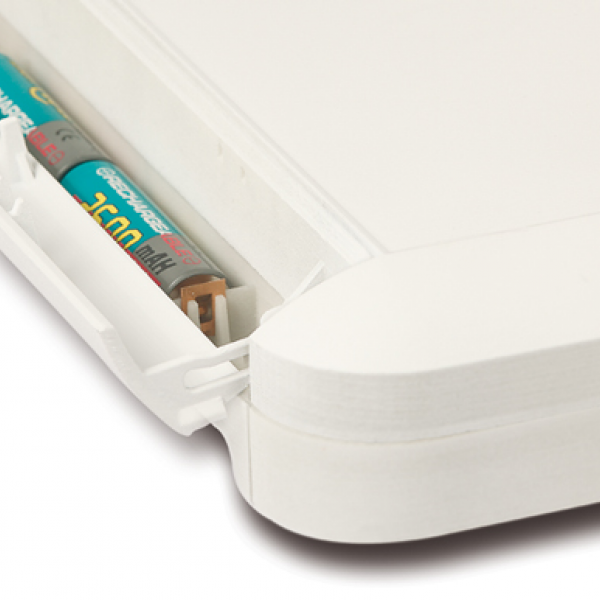

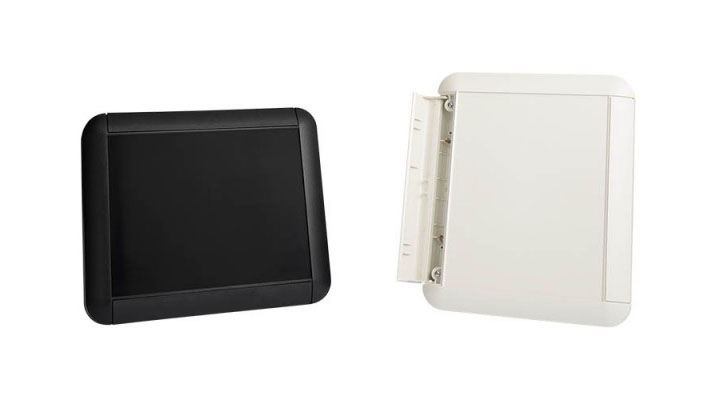

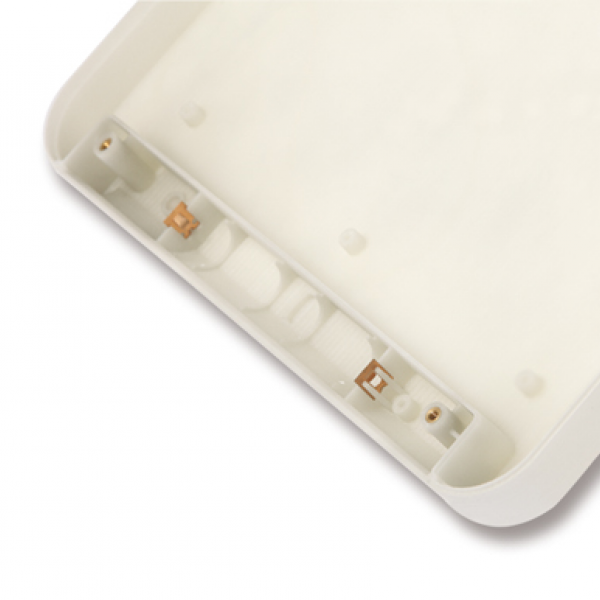

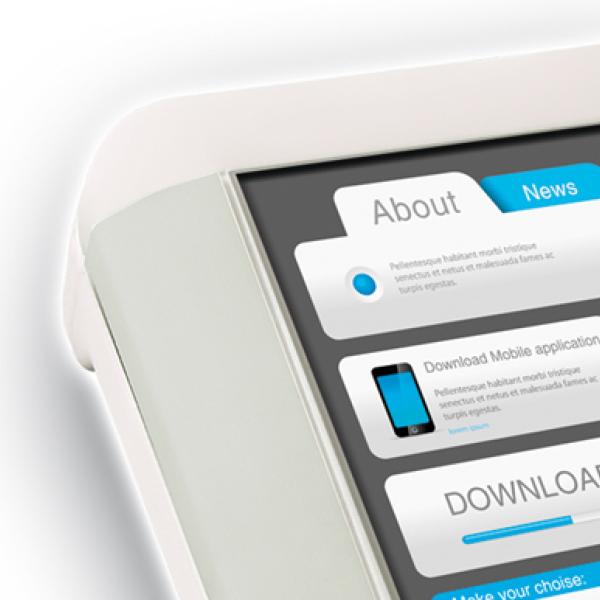

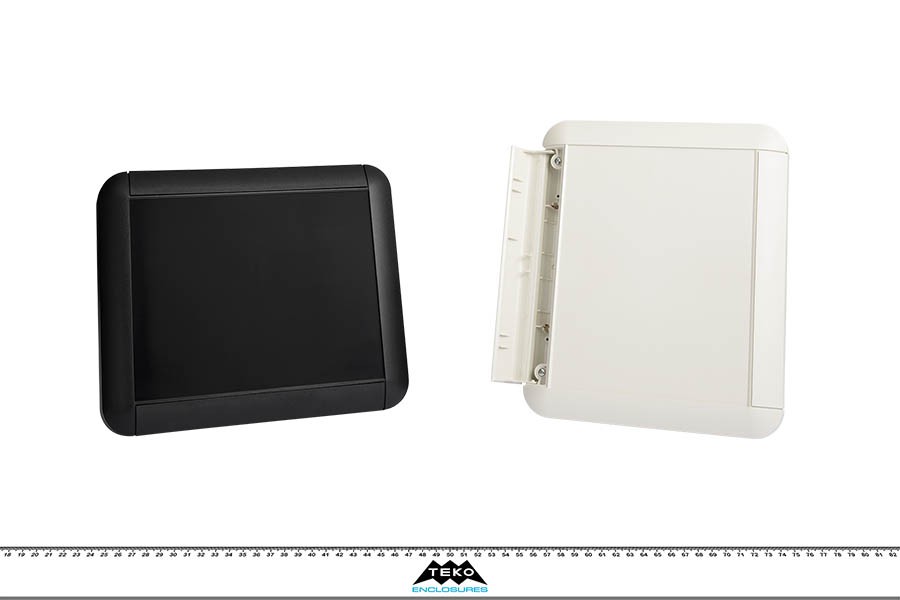

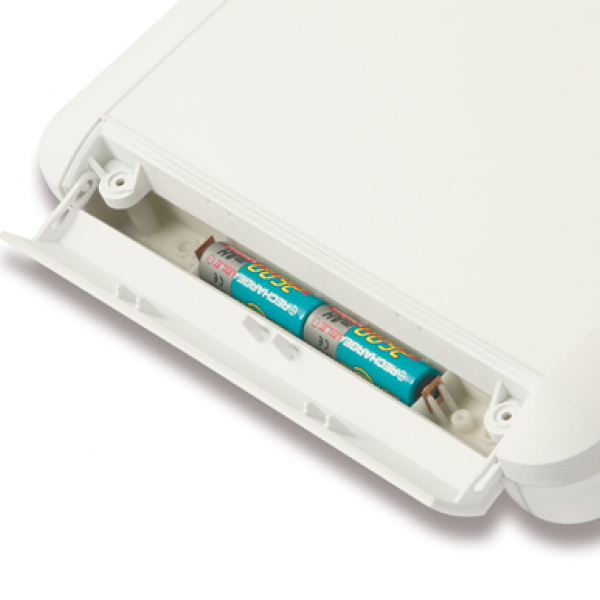

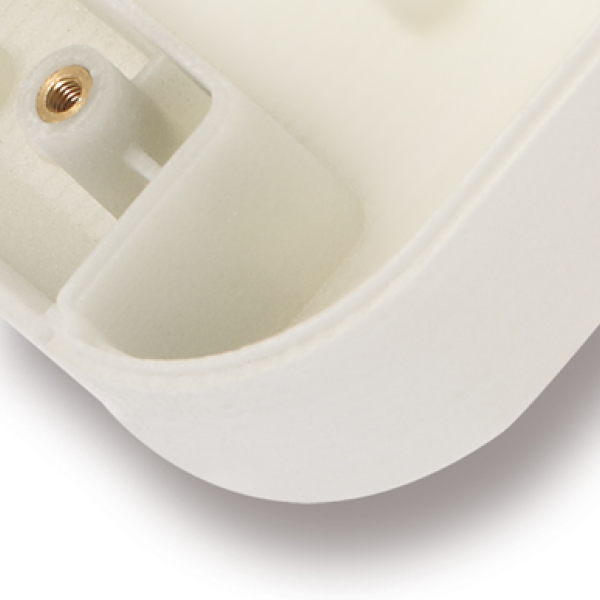

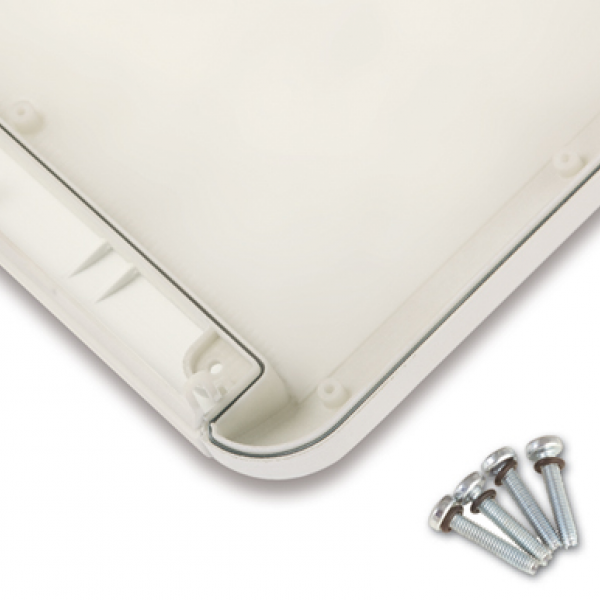

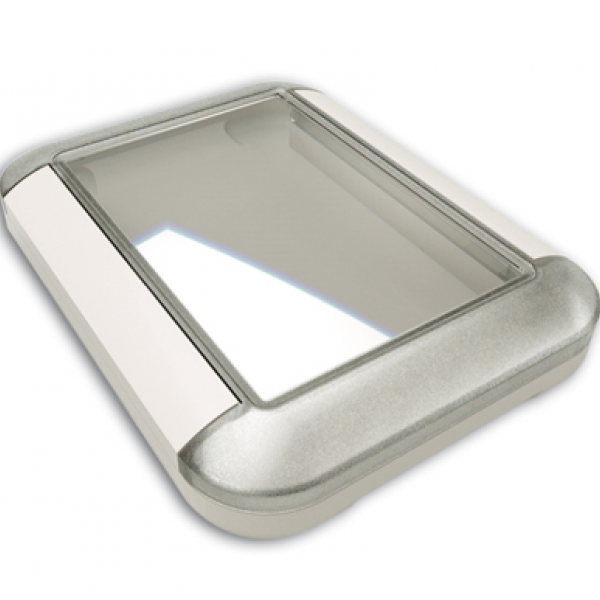

Multifunction flat enclosure, modern designed, ideal for desktop, hand-held and wall mounting applications. Wide recessed area on the top part suitable for touch-screen displays up to 10” (204,5x158,5mm). This model is equipped with IP65 sealing kits for screws and case. Internal battery compartments on both sides to accept 2+2 1,5V mignon cells (AA). Internal bosses on top and bottom for an easy fixing of the PCB. Closing by four M3 screws.
Details
Produkte
| Modell | L (mm) | W (mm) | H (mm) | Farbe (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Schrauben | Batterie | Zubehör | Zeichnungen | Mehr | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

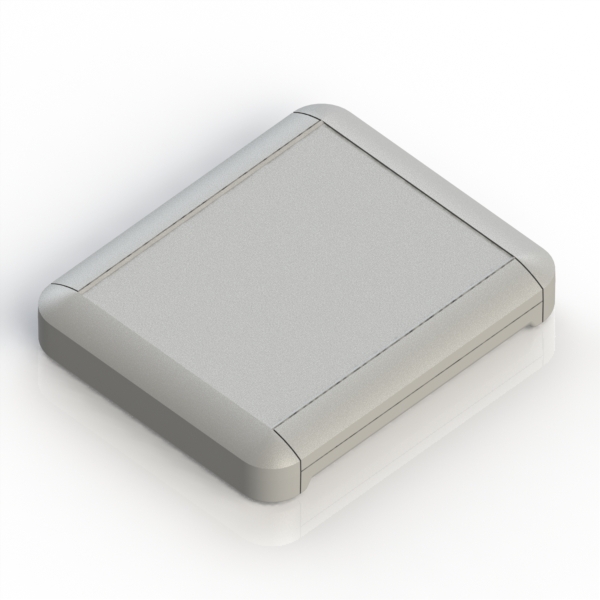

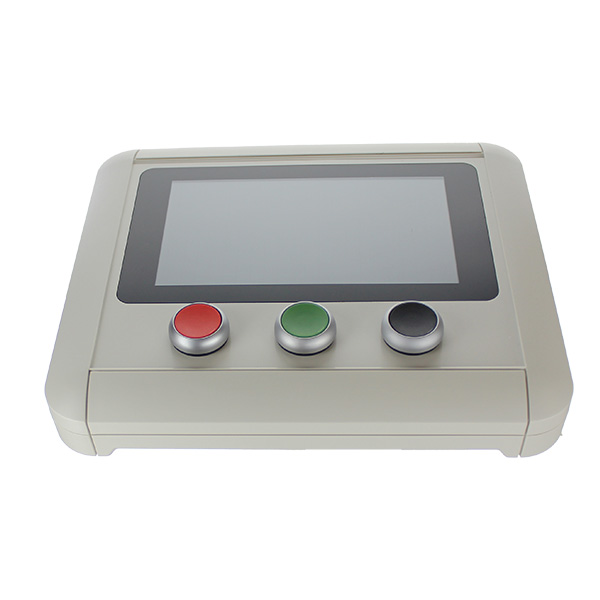

TW31.7 NEW |
252,5 | 210 | 40 |
9002 |
L320 | 246 | 163,6 | 4 | 4 x AA |
PDF DWG |
||
|

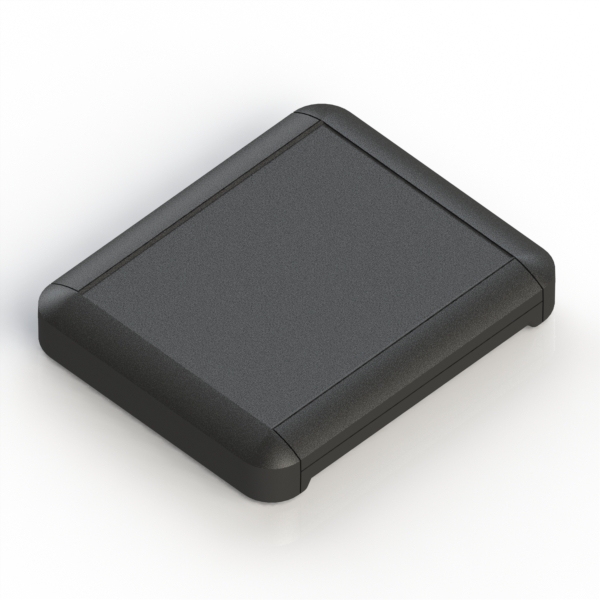

TW31.9 NEW |
252,5 | 210 | 40 |
9004 |
P2H-AT | 246 | 163,6 | 4 | 4 x AA |
PDF DWG |
||
|

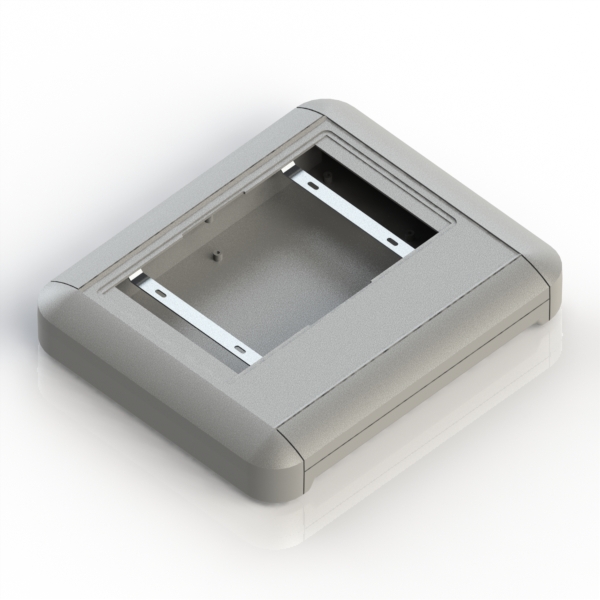

TW31_RPI.7 NEW |
252,5 | 210 | 40 |
9002 |
L320 | 246 | 163,6 | 4 | 4xAA |
PDF DWG |
||
|

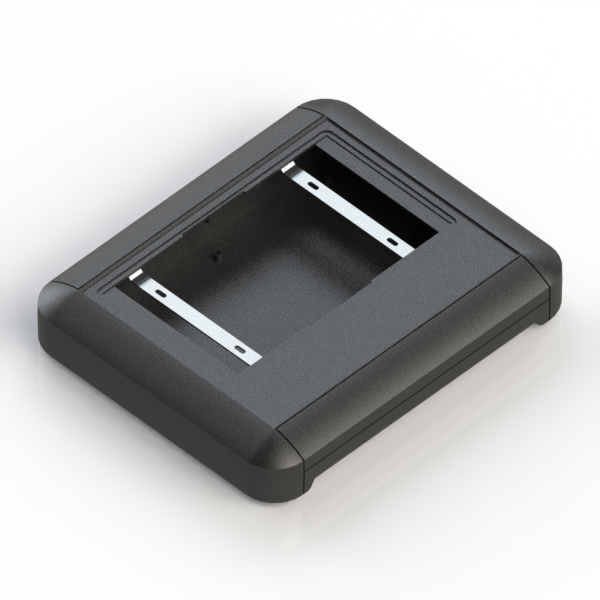

TW31_RPI.9 NEW |
252,5 | 210 | 40 |
9004 |
P2H-AT | 246 | 163,6 | 4 | 4xAA |
PDF DWG |
||
|

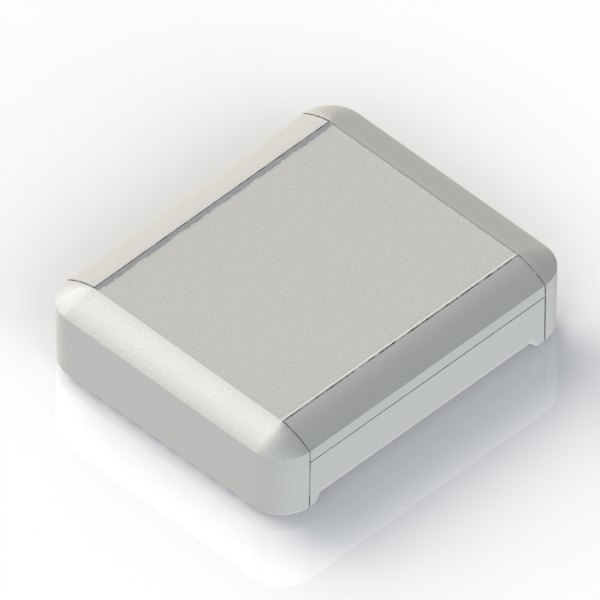

TW32.7 NEW |
252.5 | 210 | 60 |
9002 |
L320 | 246 | 163,6 | 4 |
PDF DWG |
|||
|

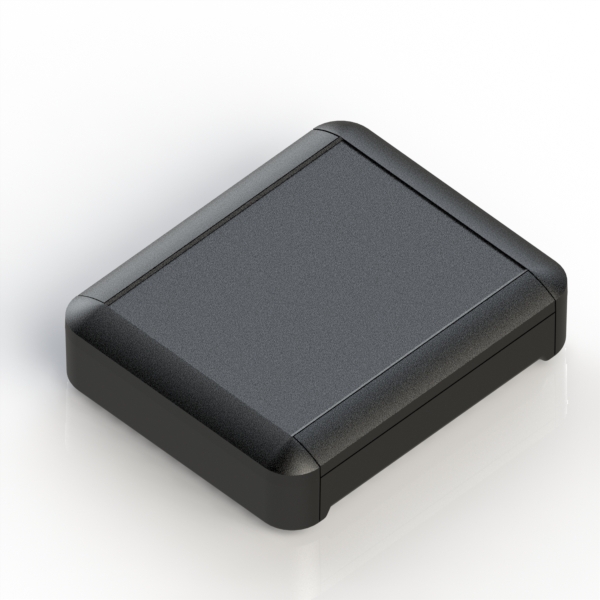

TW32.9 NEW |
252.5 | 210 | 60 |
9004 |
P2H-AT | 246 | 163,6 | 4 |
PDF DWG |
